Mini Plant Growth Chamber

Description

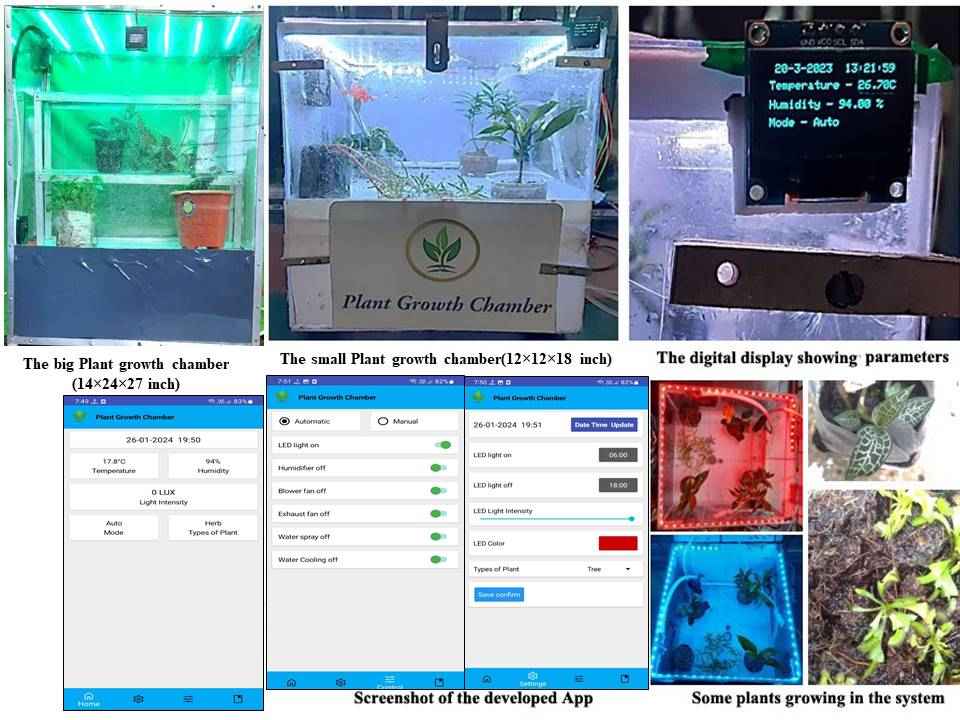

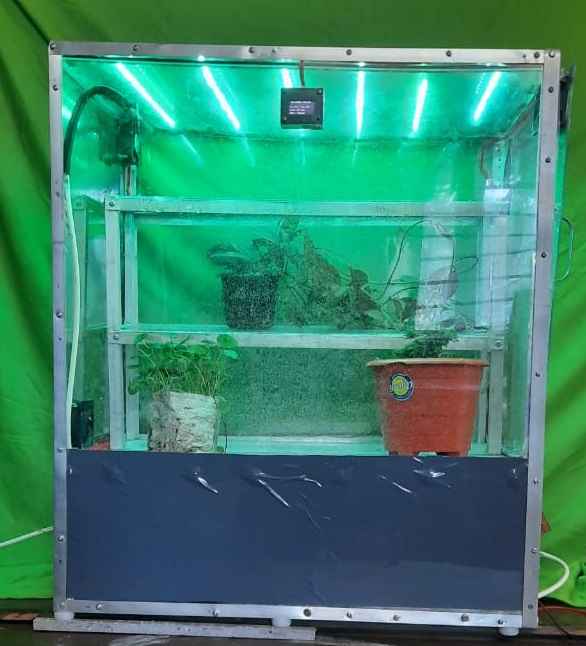

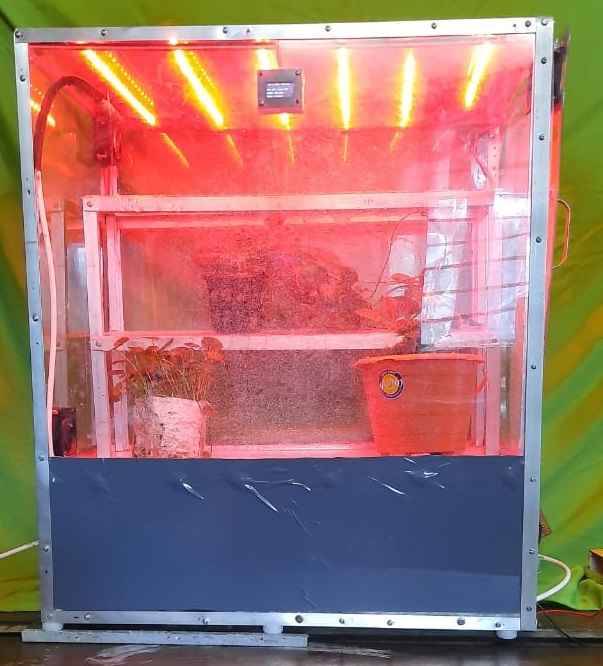

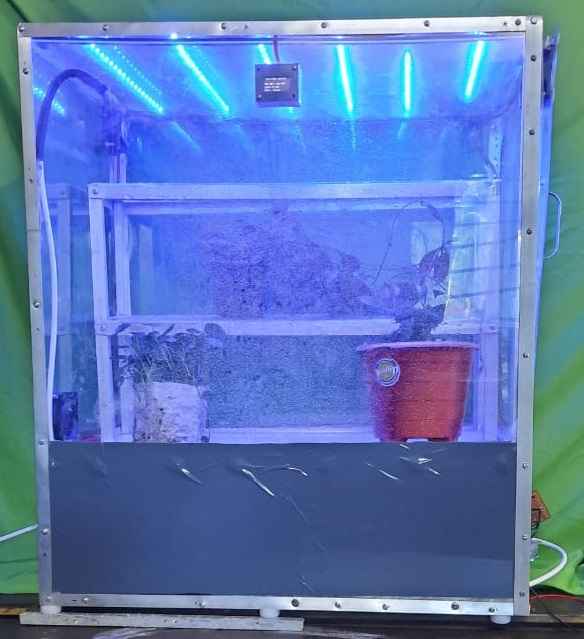

The instrument is the low cost growth chamber for the plant and specifically the invention provides an environment controlling system for plant growing. Most specifically, the device is used as a plant hardening chamber for growing in vitro grown plants according to the climate of the place. The invention the device comprises of Ultrasonic Humidifier, Intensity controlled RGB LED light panel, probe for temperature control, four timer, blower, solar controller, LCD display board, sprinkler system, programmable microcomputer to control the timer. In another aspect of the invention, stopcock or valve is used to control the water flow from main chamber to inside chamber as per change of outside environment and requirement of the inside plants. Humidifier and temperature is controlled and regulated as per requirement in the chamber.

Key features

• This system is able to grow and develop endangered and costly ornamental plants.
• This system can create hill-like weather to grow different endemic species with less investment in monitoring.
• This portable system requires less space and can be run by solar energy so no extra electricity is needed.
• The water used in this system is the rainwater harvested from the roof solar panel and therefore no extra water is required.
• The plants can be provided for their medicinal value in drug industries.
• The system can be provided for the common researcher, colleges and universities, and plant-loving people as well.
